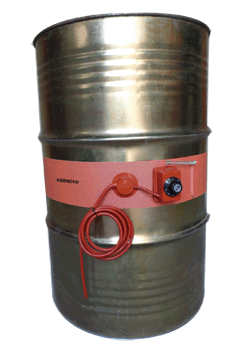

Silicone Drum Heater

Keenovo drum and pail heaters can provide practical,efficient means of freeze protection,viscosity control and maintenance of materials at elevated temperatures. Built-in adjustable thermostat allows user maintain the desired temperature.

We have all kinds of heaters for various drum and pail of different sizes from 5 gallon to 55 gallon. As they conduct heat through the drum wall to the material inside the drum or pail, drum heaters can operate at higher temperatures and work faster on metal drums because of better thermal conductivity. We also have gentle drum heaters for plastic and fiber drums.

Features:

• Fits various drum sizes
• 115V and 230V available
• Electrically grounded, insulated screen
• Optional adjustable thermostat
• Heavy hook and spring attachment
• Resistance to many chemical substances
• Custom configuration available

Typical Applications:

• Viscosity control, freeze protection, temperature maintenance and melting of solids for:
• Adhesives
• Asphalt
• Bio-fuels
• Plastics
• Resins
• Paints and varnishes
• Waxes
• Oils, fats, greases
• Molasses, chocolates, syrups
• Mastics

Specifications:

The form below shows part of the models of our drum heaters . This is to give you an idea how the combinations could be. Please contact us for other specifications.

Serial No.	Drum Material	Drum capacity(gal.)	Diameter(in.)	Wattage	Voltage	Heater Length/width(in.)
1	Metal	55	22 1/2	1500	115	64.50/4
2	Metal	55	22 1/2	1500	230	64.50/4
3	Metal	30	18 1/4	1000	115	52.50/4
4	Metal	30	18 1/4	1000	230	52.50/4
5	Metal	15	14 1/4	750	115	35.88/4
6	Non-metal	55	22 1/2	750	115	64.5/6
7	Non-metal	55	22 1/2	750	230	64.5/6
8	Non-metal	30	18 1/4	750	115	51.0/6
9	Non-metal	15	14 1/4	370	115	38.5/6
10	Metal	5	11 1/4	450	115	30/4
11	Metal	5	11 1/4	450	230	30/4
12	Non-metal	5	11 1/4	300	115	29/6
